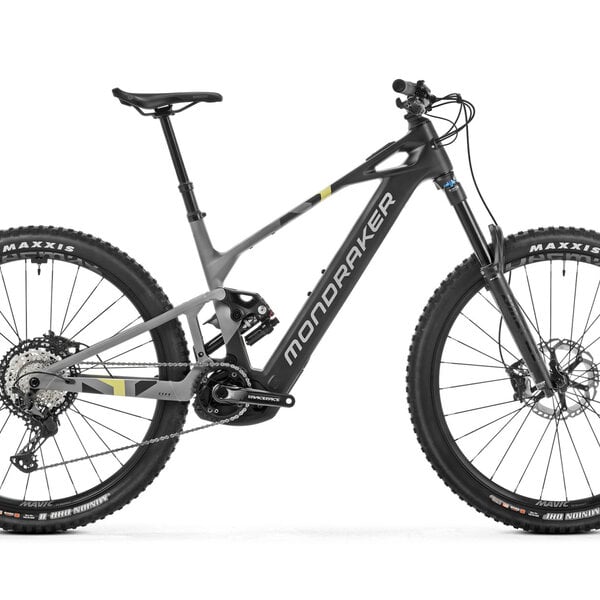

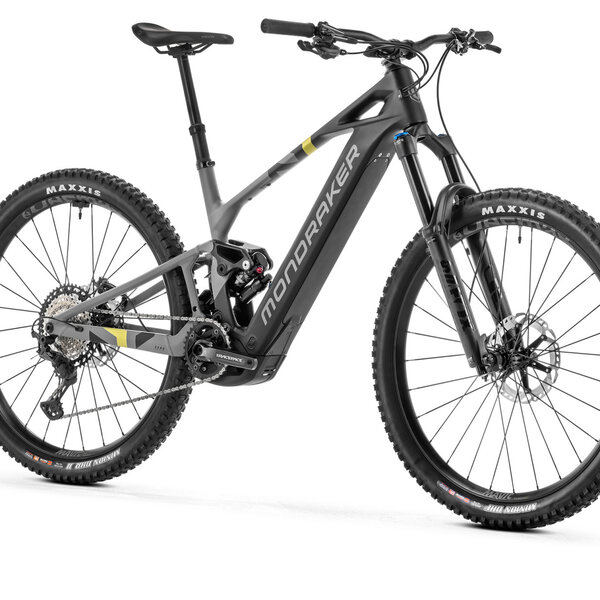

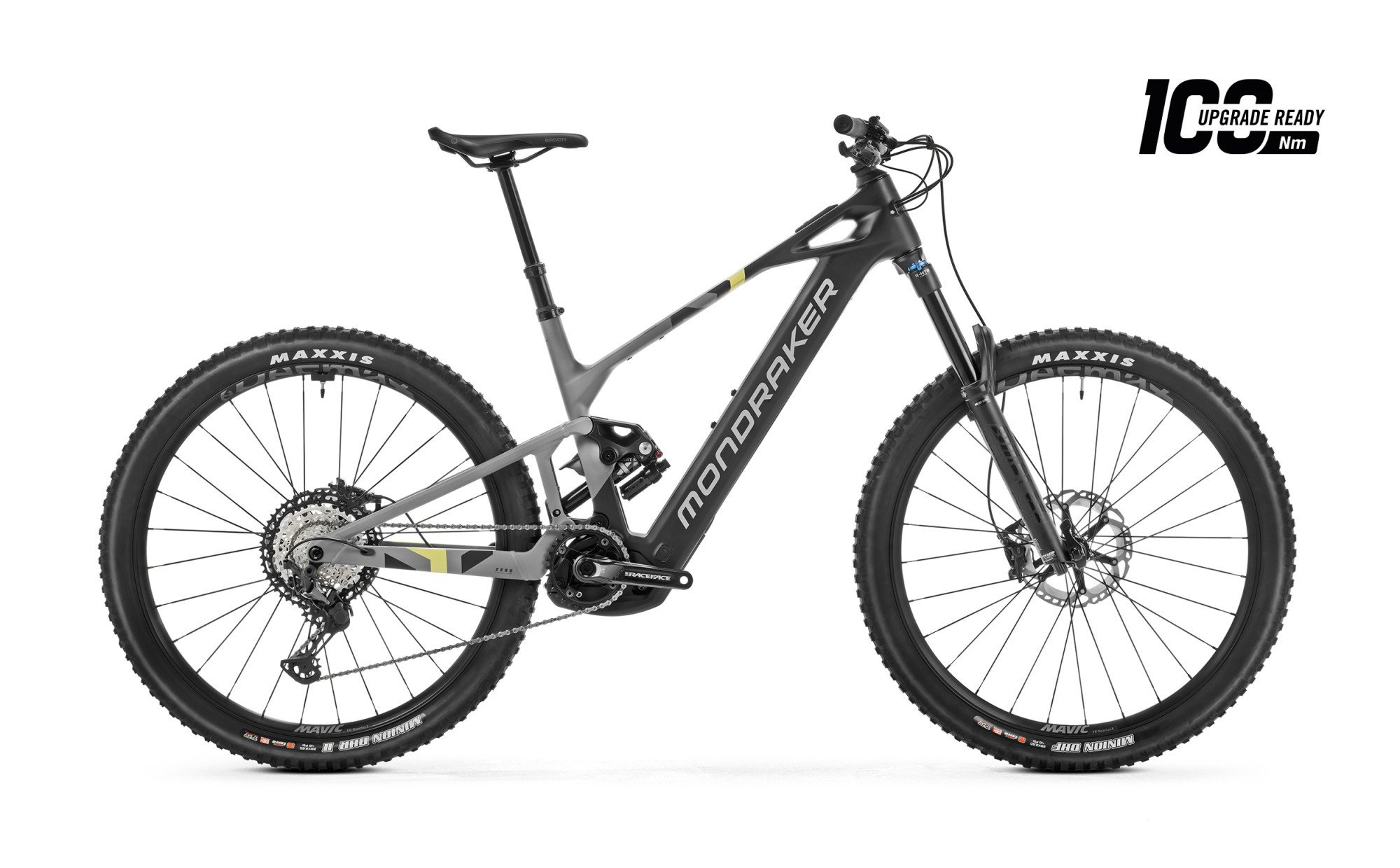

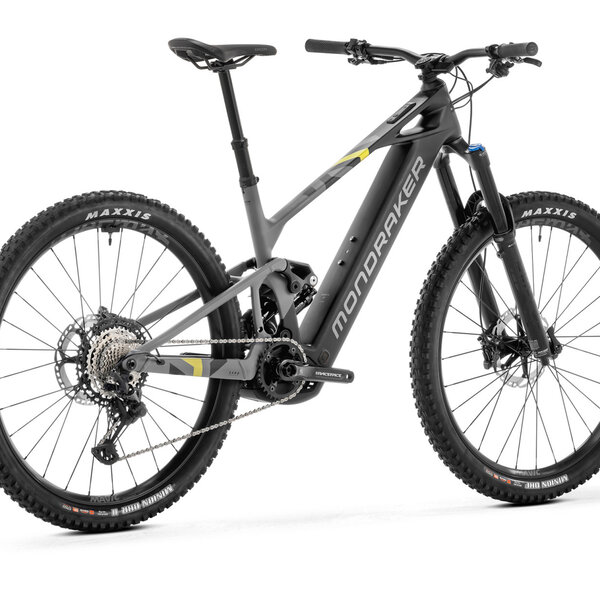

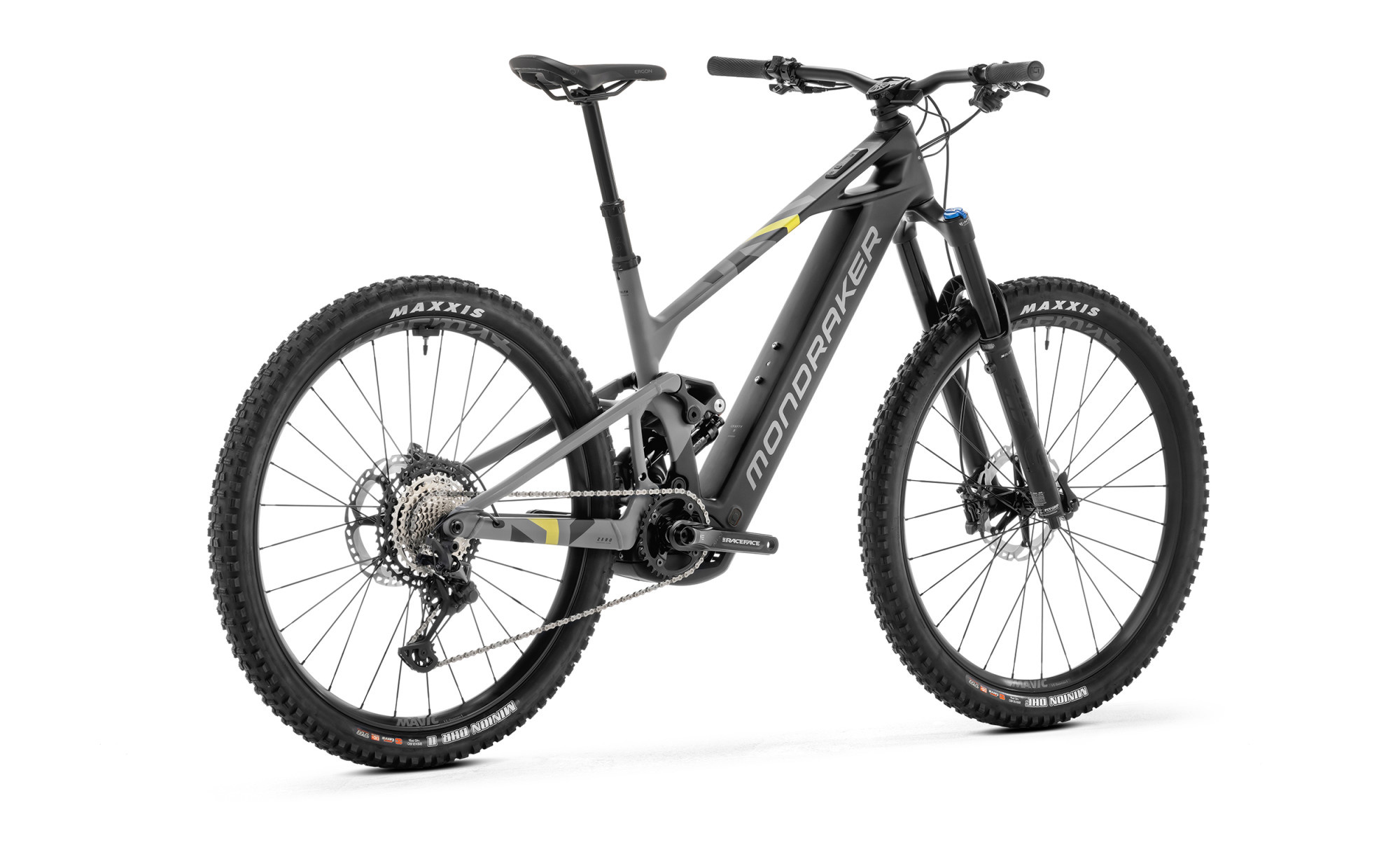

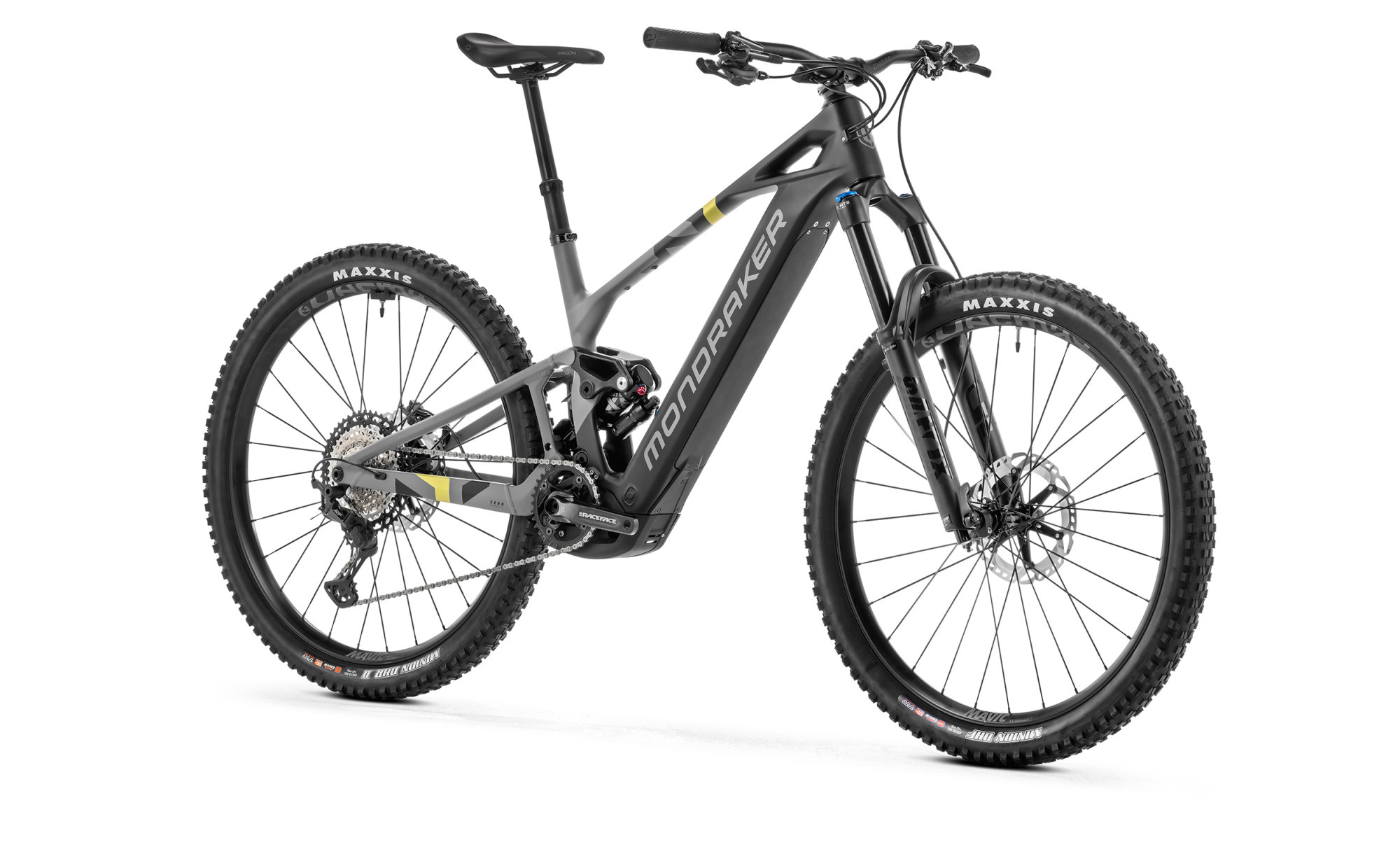

2025 Mondraker CRAFTY CARBON R

**Last 2025 Crafty R, in Large, with FREE invisiframe kit fitted and updated to 100Nm**

Crafty is our best selling range from Mondraker, with 150mm rear travel and 160mm front and Bosch's excellent CX motor.  For 2025, all frames have been redesigned with a new suspension pivot layout and shock location, carbon front triangle and tidy internal cable/hose routing.

Frame features

• Stealth Air Carbon front triangle, aluminium rear
• Fox Float X Performance
• Rear wheel travel - 150mm
• Designed for 160mm fork travel
• Forward Geometry

Component sizes

• 29” wheels
• 2.6” max rear tyre clearance
• 148mm rear wheel spacing
• 200 post mount brake
• Two bottle mounts
• 31.6mm seatpost
• 185 x 55mm shock

Frame - Crafty Stealth Air full Carbon front triangle, Stealth Alloy rear triangle, Updated Zero Suspension System, 150mm travel, Forward Geometry, internal removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, exclusive plastic motor covers.

Rear shock - Fox Float-X LV Performance, 185x55mm. Settings: compression 2 positions lever, low-speed rebound, air preload. Trunnion top mount, 30x8mm bottom bushings

Fork - Fox 38 29 Float GRIP Performance, 160mm, e-bike tuned, tapered steerer tube, Boost 15x110mm axle, 44mm offset. Settings: 3 positions with micro adjust compression, low-speed rebound, air preload

Headset - Acros custom ZS56/ZS56, 1-1/8", 1.5" head tube, Internal cable routing, sealing plugs without blocklock

Rear mech - Shimano XT M8100 Long Cage 12s

Shifter - Shimano XT M8100 12s

Cassette - Shimano XT M8100 12s 10-51t

Chain - Shimano XT M8100 12s

Crankset - Race Face Aeffect-R ebike, 160mm

Brakes - Shimano XT M8120 4 piston, 203mm Icetech rotors

Handlebar - Onoff S6 1.0 7050 alloy, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 1.5 rise.

Stem - Onoff S6 30mm 0º, 6061 forged alloy + CNC, 31.8mm barbore

Grips - Onoff Forest, CNC lock-on, 135mm

Seatpost - Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 140-115mm (388-235mm), M size: 160-135mm (428-255mm), ML size: 180-155mm (468-275mm), L size: 210-185mm (528-305mm), XL size: 210-185mm (528-305mm)

Saddle - Ergon SM-10

Front Tyre - Maxxis Minion DHF 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead

Rear Tyre - Maxxis Minion DHR II 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead

Front hub - Mavic E-Deemax 29, 30mm internal width, welded, PFP, tubeless ready, 28 spokes

Rear hub - Mavic E-Deemax 29, 30mm internal width, welded, PFP, tubeless ready, 28 spokes

Rims - Mavic E-Deemax 29, 30mm internal width, welded, PFP, tubeless ready, 28 spokes

Motor - New Bosch Performance Line CX (25Km/h) SMART SYSTEM (BDU384Y)ide

Battery - Bosch Powertube 800Wh

Controller/Display -
